Simultaneous and continuous measurement of up to 5 components

Single beam, sample switching system Ideal for flue gas monitoring in waste incinerators, boilers, and furnaces

Sample switching system ensures zero-point stability

Space-saving design

A variety of functions: auto calibration, O2-corrected output, averaging, alarm, etc

Japanese type approval

Continuous monitoring of 7 components:- NOx, SO2, CO, CO2, O2, HCl, and dust

Ideal for environmental monitoring

Space-saving design

All the necessary equipment are housed in a cabinet of 1215 (W) x 700 (D) x 1780 (H) mm size

Less electrical work: signal and power terminals are in one place

Maintenance-free HCl measurement

Japanese type approval (NOx, SO2, CO, O2)

Saves power by 40% compared to conventional models

Continuous monitoring of CO and O2 in flue gas

Temperature recording

CO concentration recording

CO peak count alarm

Japanese type approval certified

Continuous monitoring of HCl, NH3, CO, CO2, CH4, and O2

Fast response ≤ 5 seconds (≤ 2 seconds version available)—suited for use in a control system

Dual-beam version available for CO + CO2 or CO + O2 simultaneous measurement

O2 analyzer with the instrument air purge system available

Low maintenance and long-term superior stability

Suited for measurement under high temperature and dusty environment

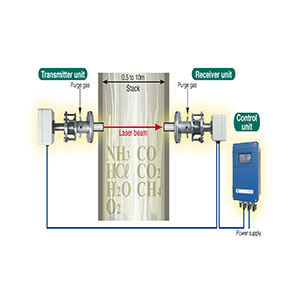

Optical path length (stack diameter) 0.5–10 m

Hardly affected by interference from other gases

Gas sampling device is unnecessary : For quick response, insert the detector directly into the flue Gas sampling functions such as a gas aspirator and a dehumidifi er are not required

Easy maintenance : The sensor equipped with the detector, has unit construction, it is easy to replace. By separating the detector and the flow guide tube, filter replacement is easy

More reliable than sensor diagnosis, sensor recoverable function : Depending on the concentration of the measurement gas, the power of the sensor might deteriorate. The equipment includes sensor recovery function electronically, checking the deterioration status of the sensor depletion.Therefore, it has high reliability and long-lasting stability

Safe and secure : System detects thermocouple break for heater control on the sensor side. Safety functions of isolating power supply to the detector or isolating power via external contact input are also

Easy operation : The operation and setting for the converter can be performed interactivelly, and available as English, Japanese or Chinese for language display
