Remote seal & Diaphgram seal Transmitters

frenic-mega-rating-0.4kw-710kw

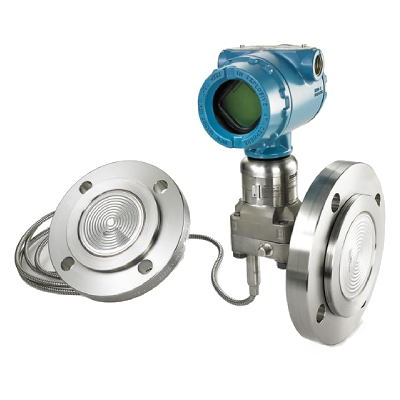

Rosemount™ 1199 Diaphragm Seal System

Protects transmitter diaphragm from corrosive, erosive or extreme temperature processes

Wide variety of seals meet varying process requirements and specifications, including industry-specific applications

SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations

Eliminates need for mounting hardware to reduce installation costs

Adaptable direct mount gage or absolute seal system can be used for pressurized or vented tank applications

Tuned-Systems can reduce temperature effects by 10-20% and improve response time by 80% vs. traditional installations

ace

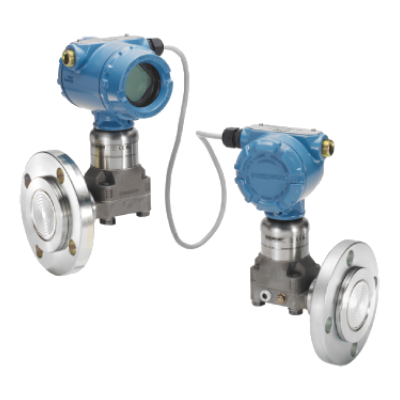

Rosemount™ 3051S Electronic Remote Sensor (ERS™) System

Provides DP Level measurements with a faster response time than traditional systems

Sensors are independently installed without heat tracing and insulation to offer simple installation

Digital architecture delivers stable measurement for applications with excessive temperature variation

Each sensor can be independently serviced for simplified maintenance

Entire system utilizes a single 2-wire, 4-20 mA HART® loop for straightforward system integration

Graphical interface of device dashboard offers simple configuration, commissioning and troubleshooting

Additional monitoring information of static pressure and sensor module temperature provide improved process insights

SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
