Ultrasonic Flow Meter

1. Clamp-on type sensor easily mountable on existing pipe

2. Suited for a wide range of liquids, for example, deionized water, cooling water, chemical solution, drinking water, sea water, oil, tap water, hot water, industrial water, corrosive liquids

3. Ultrasonic flowmeter for air is also available

Spool Piece Ultrasonic Flowmeter (FST)

  • High accuracy ±0.2% of rate
  • Low maintenance
  • Bubble resistant
  • Wide temperature range from -40°C to +150°C
  • Non conductive fluid including oil, mixed liquid, purified water can be measured
  • Easy-to-operate with backlit LCD and front panel operation

Portable Ultrasonic Flowmeter (FSC)

  • Data storage on SD card
  • Consumed energy calculation
  • Flow velocity profile (option)
  • Compact & lightweight
  • v12 hours of continuous battery operation
  • Full variety of detectors (13 mm to 6000 mm)
  • Low to high temp (-40 to +200 deg C
  • High accuracy (1%)
  • Improved anti bubble characteristics
  • Large graphic LCD, easy to read
  • Large capacity to storage by SD memory card up-to 8GB (256 MB can store about 1 year measurement data)
  • USB serial communication to PC
  • Provided with printer for screen hard copy

M-Flow PW (FLR)

  • Excellent anti-bubble performance
  • Standard accuracy: 1.5% of rate (1.0% is also available)
  • Fast response: 0.2 seconds
  • Operation available without opening the cover
  • RS-485 communication (option)
  • Parameter loader software provided
  • Extendable detector for pipe size from 50 mm to 1200 mm

Hybrid Type Duosonics (FSH)

  • Offers highly accurate measurement (0.5%–1%) of volumetric flow rate
  • For a wide range of fluid including a fluid with air bubbles or particles
  • In pulse doppler mode, you can check the flow profile on PC in real time
  • Fast response: 0.2 s in pulse doppler method ,0.5 s in transit time method
  • Clamp-on detector
  • 2-path measurement available

Ultrasonic Flowmeter for Air (FWD)

  • No pressure loss = no energy loss
  • Tolerant to oil and mist - No need for filter such as mist separator
  • Lithium-ion battery driven, Battery life: approx. 10 years
  • Normal conversion provided as standard Actual air flow, temperature, and pressure are converted into those in standard conditions
  • Forward/reverse flow measurement
  • Air leakage detection

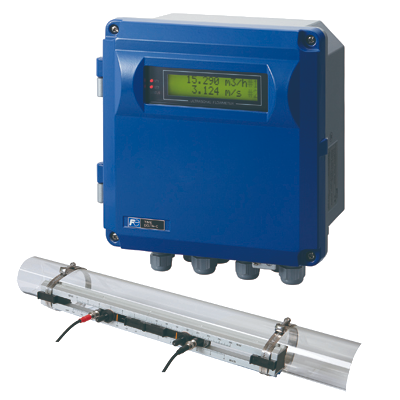

TIME DELTA-C advanced type (FSVL)

  • Simultanous measurement of dual channel flow with one transmitter
  • High accuracy measurement using 2 pipe system for 1 pipe
  • Measurement of energy consumption in cooling and Heating System
