Vortex Flow Meters

Vortex flow meters offer many advantages for flow measurement including easy installation without impulse lines, no moving parts to maintain or repair, less leak potential and a wide flow turndown range. Vortex meters also offer very low power consumption, allowing for use in remote areas.

Rosemount 8600 Utility Vortex Flow Meters


  • General purpose flow metering & utility applications including clean fluids & steam flow
  • Ensure reliability and cut costs with no moving parts to repair or maintain
  • Eliminate impulse lines and plugging issues with inline technology
  • Simplify installation with no impulse lines or field calibration or zeroing required
  • Cover a broad span of flow rates with wide range ability
  • Simplified maintenance with superior vibration immunity without any moving parts

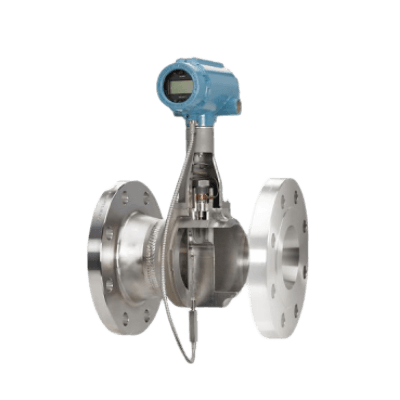

Rosemount 8800 Critical Process; Vortex Flow Meters


  • Unique design isolates Vortex sensor from the process, enabling safe, on-line sensor replacement for maximum uptime
  • Reduce installation costs with no bypass lines
  • Increase personnel safety with a needle valve that creates double block and bleed
  • Eliminate plugging and clogging with an all cast design
  • Achieve vibration immunity with a mass balanced sensor and Adaptive Digital Signal Processing with visual filtering
  • Save time and money with no moving parts to repair or maintain
  • Simplify SIS compliance with available dual and quad Vortex flow meters

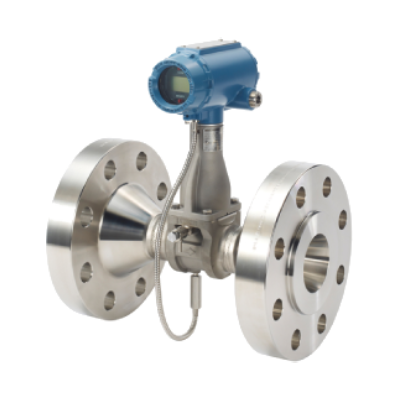

Rosemount 8800 MultiVariable; Flow Meters


  • Automatically compensates for changing fluid density in steam and liquid applications
  • Independently verify or replace the isolated, removable temperature sensor without breaking process seal
  • Non-wetted sensor design increases plant availability by reducing shutdowns for maintenance or repair
  • Compensate any liquid flow using up to five user-definable temperature and density pairs
  • Perform advanced monitoring with flow/temperature variables that can be assigned to the 4-20 mA, digital or pulse output
  • Improve reliability with diagnostics that constantly monitor temperature sensor health
  • A standard internal signal generator included in every meter simplifies electronics verification

Rosemount 8800 Reducer; Vortex Flow Meters


  • Improve low-flow-rate measurement performance with a smart reducer design
  • Simplify installation and decrease costs and project risk with built-in reducers that eliminate field assembly
  • An isolated sensor allows for inline replacement without breaking the process seal
  • Increase plant availability and eliminate potential leak points with a unique gasket-free meter body design
  • Achieve vibration immunity with a mass balanced sensor and Adaptive Digital Signal Processing with visual filtering
  • Save time and money with no moving parts to repair or maintain

Rosemount 8800 Series Vortex Flow Meters


  • The unique isolated sensor design allows for replacement without breaking the process seal
  • Increase plant availability and reduce potential leak points with a gasket-free meter body with no moving parts
  • Eliminate downtime and maintenance costs associated with plugged impulse lines with a non-clog meter body design
  • Achieve vibration immunity with a mass balanced sensor and Adaptive Digital Signal Processing with visual filtering
  • All meters arrive pre-configured and hydrostatically tested, making them ready and easy to install
  • Simplify SIS compliance with available dual and quad Vortex flow meters
  • Detect liquid to gas phase change using Smart Fluid Diagnostics
